LED Display Nepal

Product specification sheet

leddisplaynepal.com

Evolve · Creative & Special-Shaped

Evolve Flexible 3.0

Name: Evolve Flexible 3.0
Brand: Evolve

Flexible modules that wrap columns and soffits — our most-requested creative build for retail interiors.

Full specifications Typical wall sizes

Full specifications, dimensions and contact details on one page.

Front · 1/6

Cabinet front elevation — emitter grid and module seams drawn to scale.

Manufacturer product photography. Photography of the delivered installation is included in every project handover.

Pixel pitch

Brightness

1,000 nits

Refresh

3,840 Hz

Use

Indoor

How it connects

Your source to this wall

Every Evolve wall we supply ships as a complete signal chain \u2014 including the NovaStar control layer most suppliers leave for you to figure out.

How it connects

source

Source (PC / player / camera)

processor

NovaStar CX40

controller

Sending & receiving cards

wall

Evolve Flexible 3.0

Engineering

Major features, part by part

Hover any numbered point to see what it does and why it matters on site.

Reference

Typical wall sizes

Cabinets, resolution, power and weight for common wall sizes built from the 500×500 mm Evolve cabinet at P3.

Target size	Cabinets	Resolution	Actual size	Avg power	Weight
3 × 2 m	6 × 4 (24)	1000 × 667 (0.7 MP)	3.00 × 2.00 m	1.1 kW	192 kg
4 × 2.5 m	8 × 5 (40)	1333 × 833 (1.1 MP)	4.00 × 2.50 m	1.9 kW	320 kg
5 × 3 m	10 × 6 (60)	1667 × 1000 (1.7 MP)	5.00 × 3.00 m	2.8 kW	480 kg
6 × 3.5 m	12 × 7 (84)	2000 × 1167 (2.3 MP)	6.00 × 3.50 m	3.9 kW	672 kg
8 × 4.5 m	16 × 9 (144)	2667 × 1500 (4.0 MP)	8.00 × 4.50 m	6.8 kW	1152 kg
10 × 6 m	20 × 12 (240)	3333 × 2000 (6.7 MP)	10.00 × 6.00 m	11.3 kW	1920 kg

Cabinet counts are rounded to whole cabinets, so the actual size differs slightly from the target. Power is the average draw; size the supply on peak. Confirm structural loading against the manufacturer datasheet.

Recommended controlNovaStar CX40Camera-facing work — latency and scan behaviour matter more than raw capacity.NovaStar CX40 →

Why this model

Bend to 60°

Flexible modules wrap columns, waves and curved architecture.

Any aspect ratio

Cylinders, spheres, cubes and ribbons — built to the drawing.

Load-bearing floor option

Floor tiles rated for foot traffic and stage use.

Specifications

Display

Pixel pitch3 mm

LED typeSMD

Brightness1,000 nits

Refresh rate3,840 Hz

Colour depth14–16-bit

Viewing angle160° / 160°

Cabinet

Cabinet size500 × 500 mm

Resolution / cabinet167 × 167

Weight8 kg

Service accessFront

MountingFixed indoor

Power & environment

Avg power≈ 47 W / cabinet

Max power≈ 141 W / cabinet

IP ratingIP30 (indoor)

Lifespan100,000 hrs

Applications

Lobby featuresMuseumsRetail flagshipStage floors

FAQ

Can you match our architect's drawing?

Yes — we scope structure, power and content pipeline against the drawing before quoting.

Will it look sharp?

Viewing distance & image quality

Minimum viewing distance

3 m

Closest a viewer should stand

Comfortable distance

7.5 m

Where the image looks its best

Pixels per m²

111,111

Density at this pitch

Brightness

1,000 nits

Comfortable indoors

Rule of thumb: minimum viewing distance in metres \u2248 pixel pitch in millimetres. Final figures confirmed on site survey.

What you actually receive

A complete system, not just panels

LED cabinets & modules

Evolve Flexible 3.0 · 500×500 mm

Control system

NovaStar CX40 + receiving cards

Power & data cabling

Looms, distribution and redundancy

Mounting structure

Wall frame, floor stand or truss

Spare modules & PSU

Held in Kathmandu for fast swap

Commissioning

Calibration, content test, handover training

How we deliver it

Site survey

We measure the space, power and sightlines — free across Nepal.

Structure & install

Fabrication, mounting and cabling by our certified engineers.

Commissioning

Calibration, controller setup and operator training.

AMC & support

Annual maintenance with spares stocked locally.

Warranty

Up to 3 years

Honoured locally in Nepal

Indicative lead time

2\u20134 weeks

Ex-stock items ship faster

Certifications

CERoHSFCCISO 9001

Also consider

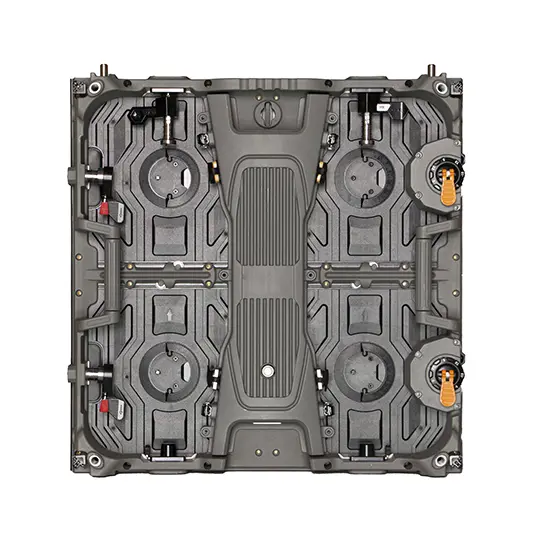

Evolve

E-P3.0

The value option for large indoor signage where the audience is never closer than four metres.

P3indoor

Evolve

FS Plus 2.6

Slim front-service cabinet for wall-recessed installations with no rear clearance.

P2.6indoor

Evolve

E-P2.5

Own-brand 2.5 mm signage with spares held in Kathmandu, so a failed module is a same-week fix.

P2.5indoor

Model	Pitch	Brightness	Use	Cabinet
Evolve Flexible 3.0 (this model)	P3	1,000 nits	indoor	500\u00d7500 mm
Evolve E-P3.0	P3	1,000 nits	indoor	640\u00d7480 mm
Evolve FS Plus 2.6	P2.6	1,050 nits	indoor	640\u00d7480 mm
Evolve E-P2.5	P2.5	1,000 nits	indoor	640\u00d7480 mm

The full Evolve line

Evolve product lines we supply

Evolve — our own-brand LED line: control-room fine pitch, indoor commercial, rental staging, weatherproof outdoor and fully custom special-shaped builds, at direct pricing with local support.

Fine Pitch (Control Rooms & Studios)

Evolve E-P0.9 · Evolve E-P1.25 · Evolve E-P1.56

3 models \u2192

Indoor Commercial

Evolve E-P1.5 · Evolve E-P1.8 · Evolve E-P2.5 · Evolve FS Plus

4 models \u2192

Rental Stage

Evolve E-P3.91 · Evolve E-P4.81 · Evolve R5 Arc Lock

3 models \u2192

Outdoor Advertising

Evolve E-P6 · Evolve E-P8 · Evolve E-P10

3 models \u2192

Creative & Custom

Evolve Transparent · Evolve Flexible · Evolve Ring · Evolve Sphere · +1 more

5 models \u2192

Need a drawing, availability or the manufacturer datasheet for Evolve Flexible 3.0?

Talk to an engineer →
