ROE Visual · Creative & Special-Shaped

ROE Visual Ruby-C Curve 1.9

Name: ROE Visual Ruby-C Curve 1.9
Brand: ROE Visual

Fine-pitch curved ROE for broadcast sets and high-end corporate stages.

Full specifications Typical wall sizes

Full specifications, dimensions and contact details on one page.

Front · 1/6

Cabinet front elevation — emitter grid and module seams drawn to scale.

Manufacturer product photography. Photography of the delivered installation is included in every project handover.

ROE Visual on YouTube

Pixel pitch

P1.9

Brightness

1,200 nits

Refresh

7,680 Hz

Use

Indoor

How it connects

Your source to this wall

Every ROE Visual wall we supply ships as a complete signal chain \u2014 including the NovaStar control layer most suppliers leave for you to figure out.

How it connects

source

Source (PC / player / camera)

processor

NovaStar CX40

controller

Sending & receiving cards

wall

ROE Visual Ruby-C Curve 1.9

Engineering

Major features, part by part

Hover any numbered point to see what it does and why it matters on site.

Reference

Typical wall sizes

Cabinets, resolution, power and weight for common wall sizes built from the 500×500 mm ROE Visual cabinet at P1.9.

Target size	Cabinets	Resolution	Actual size	Avg power	Weight
3 × 2 m	6 × 4 (24)	1579 × 1053 (1.7 MP)	3.00 × 2.00 m	1.2 kW	192 kg
4 × 2.5 m	8 × 5 (40)	2105 × 1316 (2.8 MP)	4.00 × 2.50 m	2.0 kW	320 kg
5 × 3 m	10 × 6 (60)	2632 × 1579 (4.2 MP)	5.00 × 3.00 m	3.1 kW	480 kg
6 × 3.5 m	12 × 7 (84)	3158 × 1842 (5.8 MP)	6.00 × 3.50 m	4.3 kW	672 kg
8 × 4.5 m	16 × 9 (144)	4211 × 2368 (10.0 MP)	8.00 × 4.50 m	7.3 kW	1152 kg
10 × 6 m	20 × 12 (240)	5263 × 3158 (16.6 MP)	10.00 × 6.00 m	12.2 kW	1920 kg

Cabinet counts are rounded to whole cabinets, so the actual size differs slightly from the target. Power is the average draw; size the supply on peak. Confirm structural loading against the manufacturer datasheet.

Recommended controlNovaStar CX40Camera-facing work — latency and scan behaviour matter more than raw capacity.NovaStar CX40 →

Why this model

Bend to 60°

Flexible modules wrap columns, waves and curved architecture.

Any aspect ratio

Cylinders, spheres, cubes and ribbons — built to the drawing.

Load-bearing floor option

Floor tiles rated for foot traffic and stage use.

Specifications

Display

Pixel pitch1.9 mm

LED typeSMD

Brightness1,200 nits

Refresh rate7,680 Hz

Colour depth16-bit

Viewing angle160° / 160°

Cabinet

Cabinet size500 × 500 mm

Resolution / cabinet263 × 263

Weight8 kg

Service accessFront

MountingFixed indoor

Power & environment

Avg power≈ 51 W / cabinet

Max power≈ 152 W / cabinet

IP ratingIP30 (indoor)

Lifespan100,000 hrs

Applications

Lobby featuresMuseumsRetail flagshipStage floors

FAQ

Can you match our architect's drawing?

Yes — we scope structure, power and content pipeline against the drawing before quoting.

Will it look sharp?

Viewing distance & image quality

Minimum viewing distance

1.9 m

Closest a viewer should stand

Comfortable distance

4.8 m

Where the image looks its best

Pixels per m²

277,008

Density at this pitch

Brightness

1,200 nits

Comfortable indoors

Rule of thumb: minimum viewing distance in metres \u2248 pixel pitch in millimetres. Final figures confirmed on site survey.

What you actually receive

A complete system, not just panels

LED cabinets & modules

ROE Visual Ruby-C Curve 1.9 · 500×500 mm

Control system

NovaStar CX40 + receiving cards

Power & data cabling

Looms, distribution and redundancy

Mounting structure

Wall frame, floor stand or truss

Spare modules & PSU

Held in Kathmandu for fast swap

Commissioning

Calibration, content test, handover training

How we deliver it

Site survey

We measure the space, power and sightlines — free across Nepal.

Structure & install

Fabrication, mounting and cabling by our certified engineers.

Commissioning

Calibration, controller setup and operator training.

AMC & support

Annual maintenance with spares stocked locally.

Warranty

Up to 3 years

Honoured locally in Nepal

Indicative lead time

2\u20134 weeks

Ex-stock items ship faster

Certifications

CERoHSFCCISO 9001

Also consider

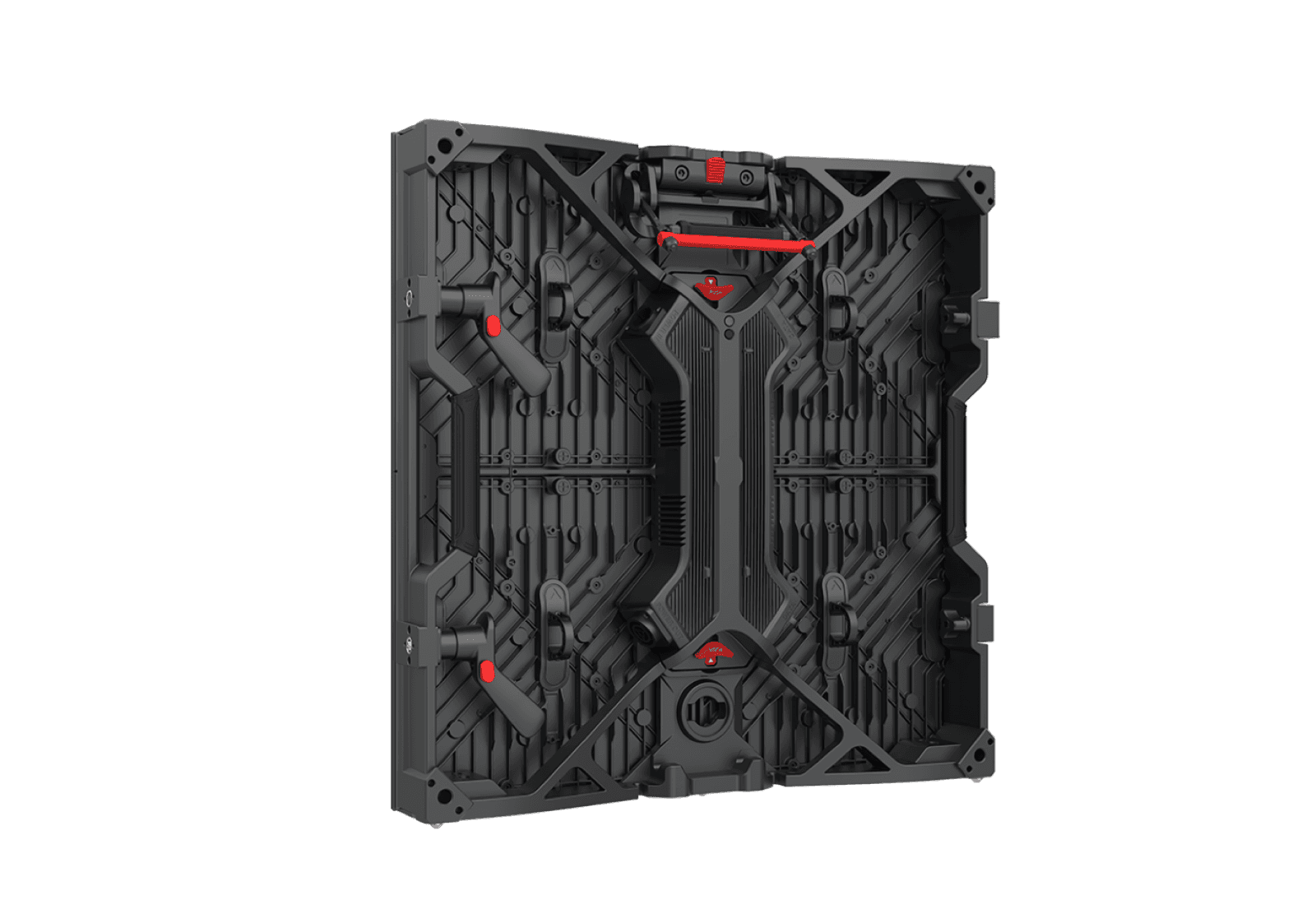

ROE Visual

Ruby RB1.9

When a broadcaster or a touring international act specifies the panel by name, it is usually this one.

P1.9rental

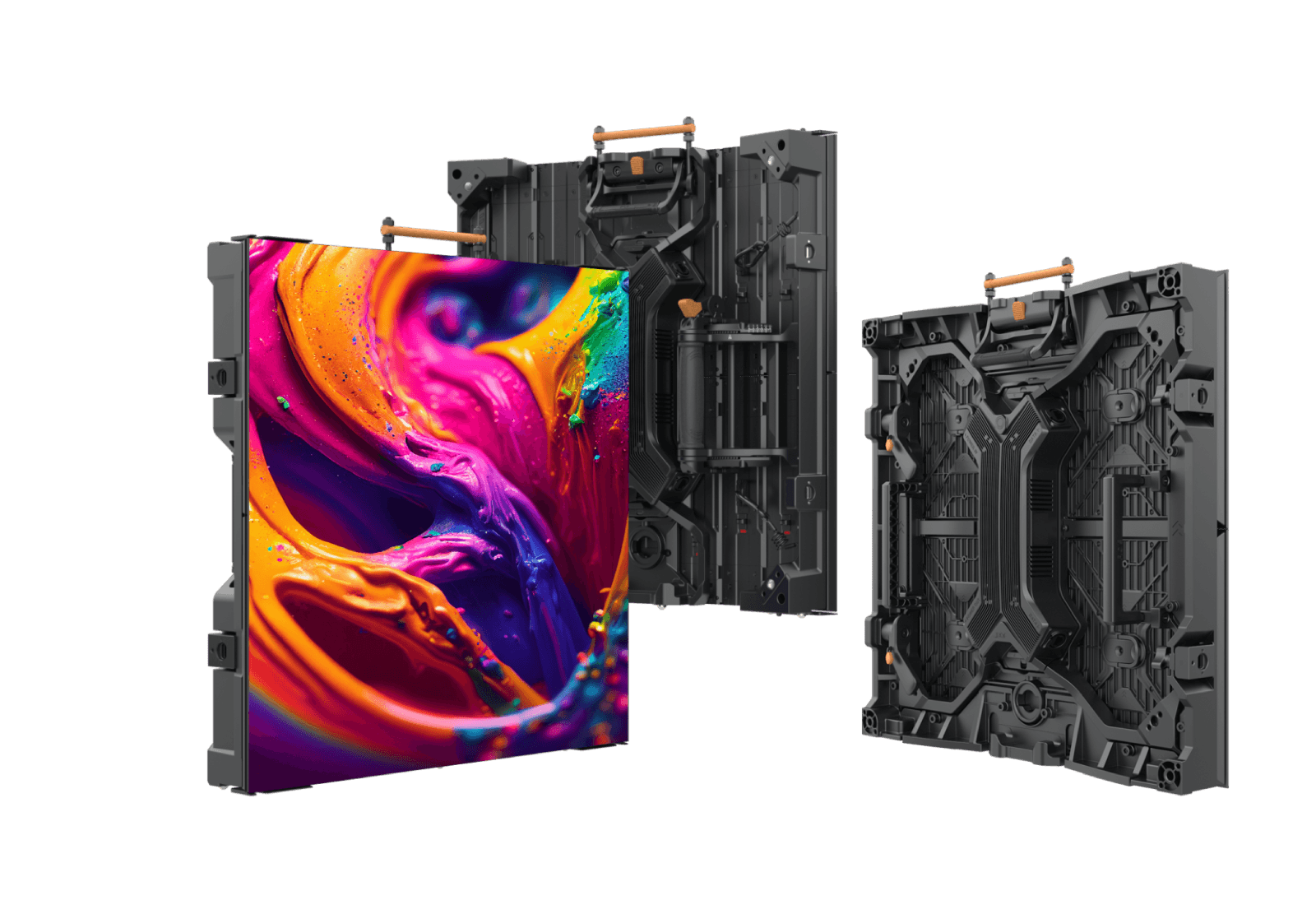

ROE Visual

Topaz TP2.6

Ultra-light ROE panel for rigs with real weight limits — old venue roofs and marquee structures.

P2.6rental

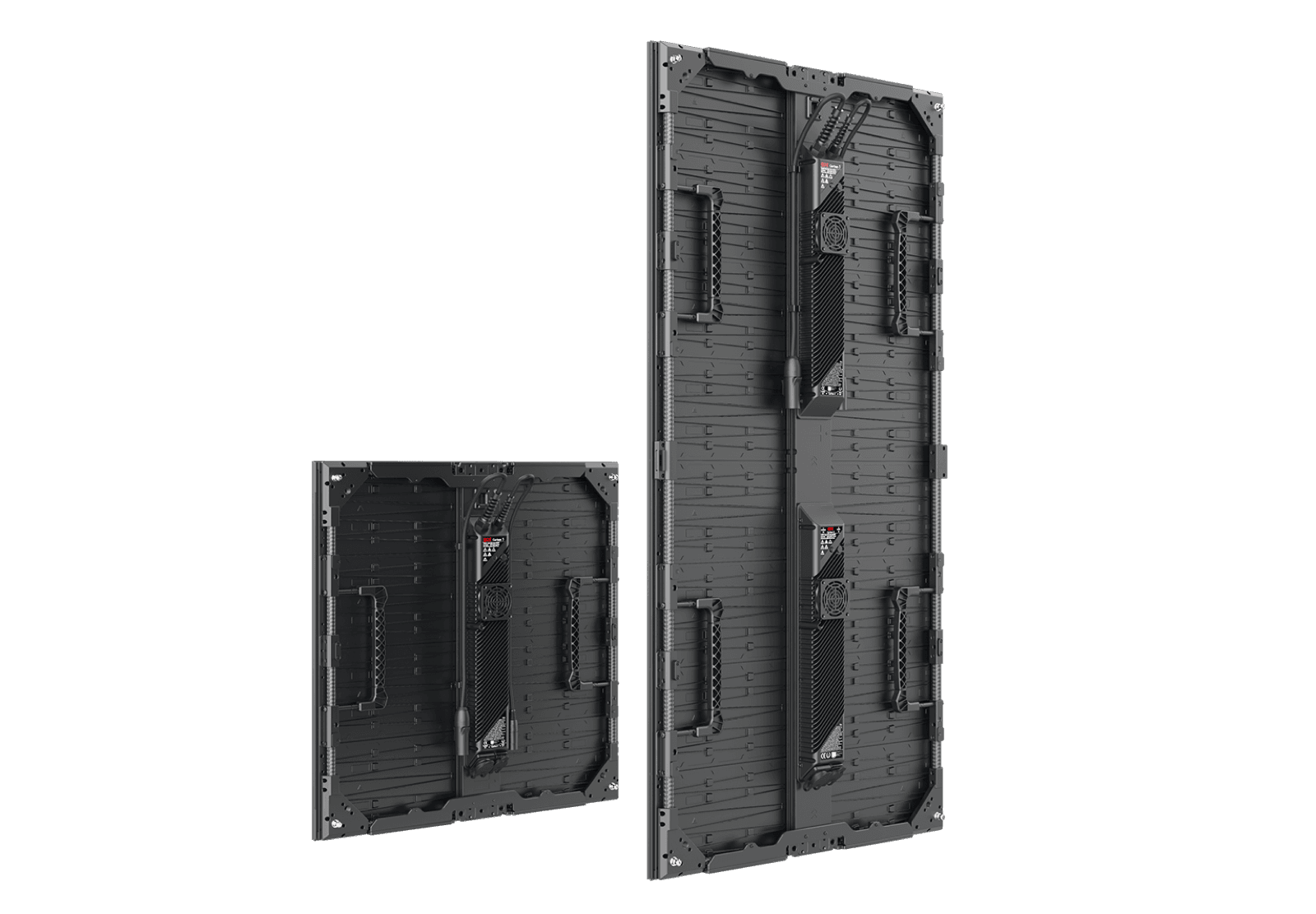

ROE Visual

Carbon CB3

ROE's rugged workhorse — the panel that survives a full touring season of trucking and re-rigging.

P3.1rental

Model	Pitch	Brightness	Use	Cabinet
ROE Visual Ruby-C Curve 1.9 (this model)	P1.9	1,200 nits	indoor	500\u00d7500 mm
ROE Visual Ruby RB1.9	P1.9	1,200 nits	rental	500\u00d7500 mm
ROE Visual Topaz TP2.6	P2.6	1,200 nits	rental	500\u00d7500 mm
ROE Visual Carbon CB3	P3.1	1,500 nits	rental	500\u00d7500 mm

The full ROE Visual line

ROE Visual product lines we supply

ROE Visual — the premium choice for rental, broadcast and virtual production. The panels behind Fox Sports, BBC Sport, Eurovision and Netflix volumes, available in Nepal.

Broadcast & XR

Black Pearl BP2 · Black Pearl 2V2 · Ruby RB1.9 · Ruby-C

4 models \u2192

Rental / Events

Carbon CB3 · Carbon CB5 · Carbon CB8 · Carbon MarkII · +5 more

9 models \u2192

Transparent (Vanish)

Vanish V8S · Vanish V8 · Vanish V8T · Vanish ST · +2 more

6 models \u2192

Fixed Install

Denali · Meru · Graphite · Jet · +2 more

6 models \u2192

Creative & Floor

Black Marble · Omni Tube · ROE Strip

3 models \u2192

Need a drawing, availability or the manufacturer datasheet for ROE Visual Ruby-C Curve 1.9?
