Unilumin · Creative & Special-Shaped

Unilumin UHF Curve 2.5

Name: Unilumin UHF Curve 2.5
Brand: Unilumin

Panel-level curve lock lets us build concave and convex radii from stock parts instead of a custom cabinet run.

Full specifications Typical wall sizes

Full specifications, dimensions and contact details on one page.

Front · 1/6

Cabinet front elevation — emitter grid and module seams drawn to scale.

Technical render drawn to cabinet dimensions. Photography of the delivered installation is included in every project handover.

Unilumin on YouTube

Pixel pitch

P2.5

Brightness

1,000 nits

Refresh

3,840 Hz

Use

Indoor

How it connects

Your source to this wall

Every Unilumin wall we supply ships as a complete signal chain \u2014 including the NovaStar control layer most suppliers leave for you to figure out.

How it connects

source

Source (PC / player / camera)

processor

NovaStar CX40

controller

Sending & receiving cards

wall

Unilumin UHF Curve 2.5

Engineering

Major features, part by part

Hover any numbered point to see what it does and why it matters on site.

Reference

Typical wall sizes

Cabinets, resolution, power and weight for common wall sizes built from the 500×500 mm Unilumin cabinet at P2.5.

Target size	Cabinets	Resolution	Actual size	Avg power	Weight
3 × 2 m	6 × 4 (24)	1200 × 800 (1.0 MP)	3.00 × 2.00 m	1.1 kW	192 kg
4 × 2.5 m	8 × 5 (40)	1600 × 1000 (1.6 MP)	4.00 × 2.50 m	1.9 kW	320 kg
5 × 3 m	10 × 6 (60)	2000 × 1200 (2.4 MP)	5.00 × 3.00 m	2.8 kW	480 kg
6 × 3.5 m	12 × 7 (84)	2400 × 1400 (3.4 MP)	6.00 × 3.50 m	3.9 kW	672 kg
8 × 4.5 m	16 × 9 (144)	3200 × 1800 (5.8 MP)	8.00 × 4.50 m	6.8 kW	1152 kg
10 × 6 m	20 × 12 (240)	4000 × 2400 (9.6 MP)	10.00 × 6.00 m	11.3 kW	1920 kg

Cabinet counts are rounded to whole cabinets, so the actual size differs slightly from the target. Power is the average draw; size the supply on peak. Confirm structural loading against the manufacturer datasheet.

Recommended controlNovaStar CX40Camera-facing work — latency and scan behaviour matter more than raw capacity.NovaStar CX40 →

Why this model

Bend to 60°

Flexible modules wrap columns, waves and curved architecture.

Any aspect ratio

Cylinders, spheres, cubes and ribbons — built to the drawing.

Load-bearing floor option

Floor tiles rated for foot traffic and stage use.

Specifications

Display

Pixel pitch2.5 mm

LED typeSMD

Brightness1,000 nits

Refresh rate3,840 Hz

Colour depth14–16-bit

Viewing angle160° / 160°

Cabinet

Cabinet size500 × 500 mm

Resolution / cabinet200 × 200

Weight8 kg

Service accessFront

MountingFixed indoor

Power & environment

Avg power≈ 47 W / cabinet

Max power≈ 141 W / cabinet

IP ratingIP30 (indoor)

Lifespan100,000 hrs

Applications

Lobby featuresMuseumsRetail flagshipStage floors

FAQ

Can you match our architect's drawing?

Yes — we scope structure, power and content pipeline against the drawing before quoting.

Will it look sharp?

Viewing distance & image quality

Minimum viewing distance

2.5 m

Closest a viewer should stand

Comfortable distance

6.3 m

Where the image looks its best

Pixels per m²

160,000

Density at this pitch

Brightness

1,000 nits

Comfortable indoors

Rule of thumb: minimum viewing distance in metres \u2248 pixel pitch in millimetres. Final figures confirmed on site survey.

What you actually receive

A complete system, not just panels

LED cabinets & modules

Unilumin UHF Curve 2.5 · 500×500 mm

Control system

NovaStar CX40 + receiving cards

Power & data cabling

Looms, distribution and redundancy

Mounting structure

Wall frame, floor stand or truss

Spare modules & PSU

Held in Kathmandu for fast swap

Commissioning

Calibration, content test, handover training

How we deliver it

Site survey

We measure the space, power and sightlines — free across Nepal.

Structure & install

Fabrication, mounting and cabling by our certified engineers.

Commissioning

Calibration, controller setup and operator training.

AMC & support

Annual maintenance with spares stocked locally.

Warranty

Up to 3 years

Honoured locally in Nepal

Indicative lead time

2\u20134 weeks

Ex-stock items ship faster

Certifications

CERoHSFCCISO 9001

Also consider

Unilumin

Uslim III MIP 2.5

MIP packaging survives knocks in public spaces far better than exposed SMD — worth it in a mall concourse.

P2.5indoor

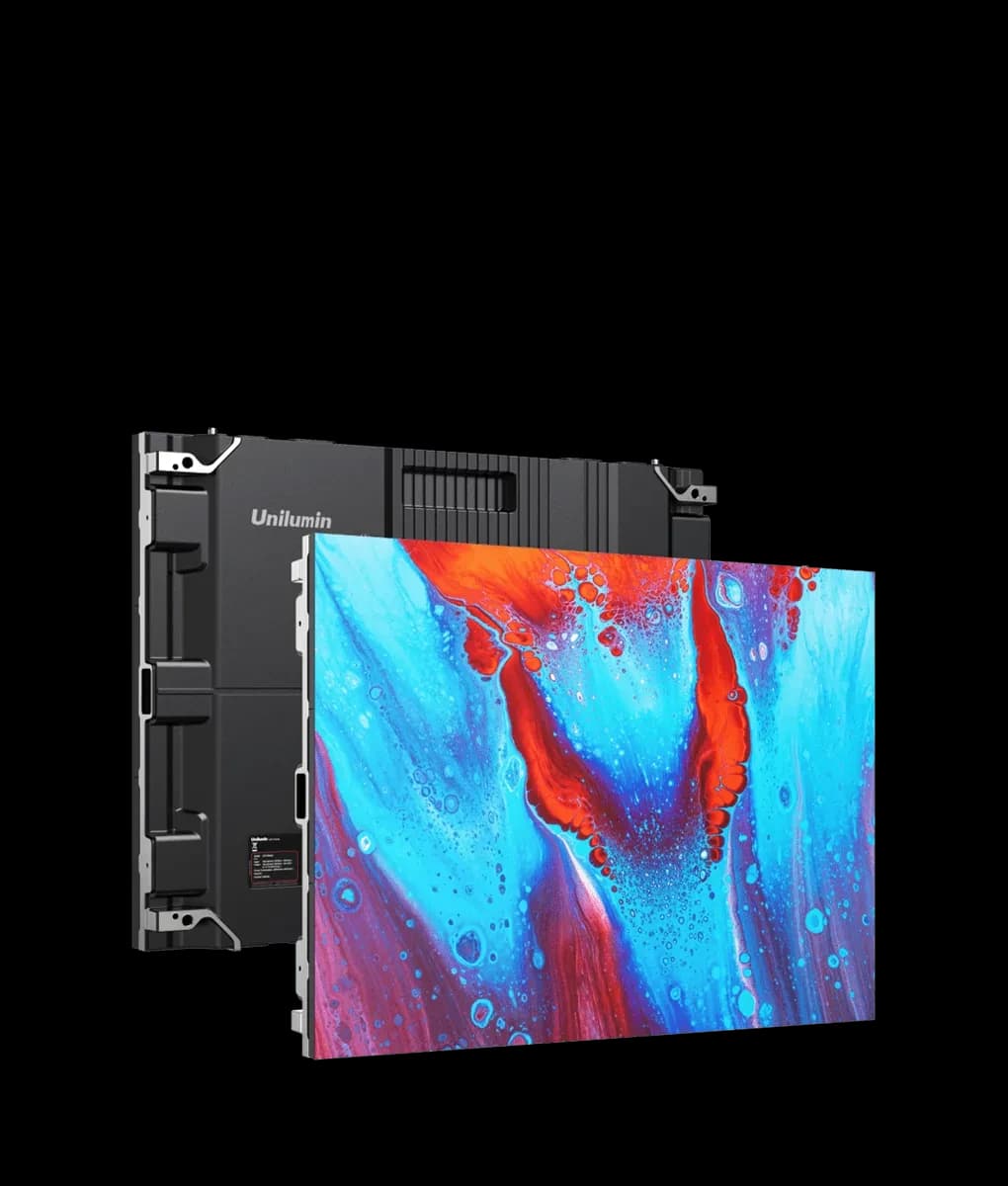

Unilumin

UDA 2.5

Built for retail: high brightness and a finish that stays legible under strong ceiling spots.

P2.5indoor

Unilumin

UsportX P2.5

Fine-pitch USports for indoor arenas and closer broadcast angles.

P2.5outdoor

Model	Pitch	Brightness	Use	Cabinet
Unilumin UHF Curve 2.5 (this model)	P2.5	1,000 nits	indoor	500\u00d7500 mm
Unilumin Uslim III MIP 2.5	P2.5	1,000 nits	indoor	640\u00d7480 mm
Unilumin UDA 2.5	P2.5	1,050 nits	indoor	640\u00d7480 mm
Unilumin UsportX P2.5	P2.5	5,500 nits	outdoor	1600\u00d7900 mm

The full Unilumin line

Unilumin product lines we supply

Unilumin's full range in Nepal — control-room fine pitch trusted by Aramco & JANAF, stadium USports, plus creative and rental — with genuine warranty and local install.

Control Room & Command

Upanel 1.2 · Upanel 1.5 · UpanelS 1.2 · UpanelS 1.5 · +6 more

10 models \u2192

Fine Pitch Indoor

Umicro · Umini III · Umini III Pro · Uslim III SMD · +1 more

5 models \u2192

Sports & Stadium (USports)

UsportX · UsportR · UsportMA II

3 models \u2192

Creative & Rental

U-Natural · Udesign SV · UHF · Umake OF Sphere · +3 more

7 models \u2192

Need a drawing, availability or the manufacturer datasheet for Unilumin UHF Curve 2.5?
