Unilumin Umake Sphere 3.9

Name: Unilumin Umake Sphere 3.9
Brand: Unilumin

True spherical and cylindrical builds — the centrepiece option for a hotel atrium or a museum lobby.

Full specifications Typical wall sizes

Full specifications, dimensions and contact details on one page.

Front · 1/6

Cabinet front elevation — emitter grid and module seams drawn to scale.

Manufacturer product photography. Photography of the delivered installation is included in every project handover.

Unilumin on YouTube

Pixel pitch

P3.9

Brightness

1,200 nits

Refresh

3,840 Hz

Use

Indoor

How it connects

Your source to this wall

Every Unilumin wall we supply ships as a complete signal chain \u2014 including the NovaStar control layer most suppliers leave for you to figure out.

How it connects

source

Source (PC / player / camera)

processor

NovaStar CX40

controller

Sending & receiving cards

wall

Unilumin Umake Sphere 3.9

Engineering

Major features, part by part

Hover any numbered point to see what it does and why it matters on site.

Reference

Typical wall sizes

Cabinets, resolution, power and weight for common wall sizes built from the 500×500 mm Unilumin cabinet at P3.9.

Target size	Cabinets	Resolution	Actual size	Avg power	Weight
3 × 2 m	6 × 4 (24)	769 × 513 (0.4 MP)	3.00 × 2.00 m	1.2 kW	192 kg
4 × 2.5 m	8 × 5 (40)	1026 × 641 (0.7 MP)	4.00 × 2.50 m	2.0 kW	320 kg
5 × 3 m	10 × 6 (60)	1282 × 769 (1.0 MP)	5.00 × 3.00 m	3.1 kW	480 kg
6 × 3.5 m	12 × 7 (84)	1538 × 897 (1.4 MP)	6.00 × 3.50 m	4.3 kW	672 kg
8 × 4.5 m	16 × 9 (144)	2051 × 1154 (2.4 MP)	8.00 × 4.50 m	7.3 kW	1152 kg
10 × 6 m	20 × 12 (240)	2564 × 1538 (3.9 MP)	10.00 × 6.00 m	12.2 kW	1920 kg

Cabinet counts are rounded to whole cabinets, so the actual size differs slightly from the target. Power is the average draw; size the supply on peak. Confirm structural loading against the manufacturer datasheet.

Recommended controlNovaStar CX40Camera-facing work — latency and scan behaviour matter more than raw capacity.NovaStar CX40 →

Why this model

Bend to 60°

Flexible modules wrap columns, waves and curved architecture.

Any aspect ratio

Cylinders, spheres, cubes and ribbons — built to the drawing.

Load-bearing floor option

Floor tiles rated for foot traffic and stage use.

Specifications

Display

Pixel pitch3.9 mm

LED typeSMD

Brightness1,200 nits

Refresh rate3,840 Hz

Colour depth14–16-bit

Viewing angle160° / 160°

Cabinet

Cabinet size500 × 500 mm

Resolution / cabinet128 × 128

Weight8 kg

Service accessFront

MountingFixed indoor

Power & environment

Avg power≈ 51 W / cabinet

Max power≈ 152 W / cabinet

IP ratingIP30 (indoor)

Lifespan100,000 hrs

Applications

Lobby featuresMuseumsRetail flagshipStage floors

FAQ

Can you match our architect's drawing?

Yes — we scope structure, power and content pipeline against the drawing before quoting.

Will it look sharp?

Viewing distance & image quality

Minimum viewing distance

3.9 m

Closest a viewer should stand

Comfortable distance

9.8 m

Where the image looks its best

Pixels per m²

65,746

Density at this pitch

Brightness

1,200 nits

Comfortable indoors

Rule of thumb: minimum viewing distance in metres \u2248 pixel pitch in millimetres. Final figures confirmed on site survey.

What you actually receive

A complete system, not just panels

LED cabinets & modules

Unilumin Umake Sphere 3.9 · 500×500 mm

Control system

NovaStar CX40 + receiving cards

Power & data cabling

Looms, distribution and redundancy

Mounting structure

Wall frame, floor stand or truss

Spare modules & PSU

Held in Kathmandu for fast swap

Commissioning

Calibration, content test, handover training

How we deliver it

Site survey

We measure the space, power and sightlines — free across Nepal.

Structure & install

Fabrication, mounting and cabling by our certified engineers.

Commissioning

Calibration, controller setup and operator training.

AMC & support

Annual maintenance with spares stocked locally.

Warranty

Up to 3 years

Honoured locally in Nepal

Indicative lead time

2\u20134 weeks

Ex-stock items ship faster

Certifications

CERoHSFCCISO 9001

Also consider

Unilumin

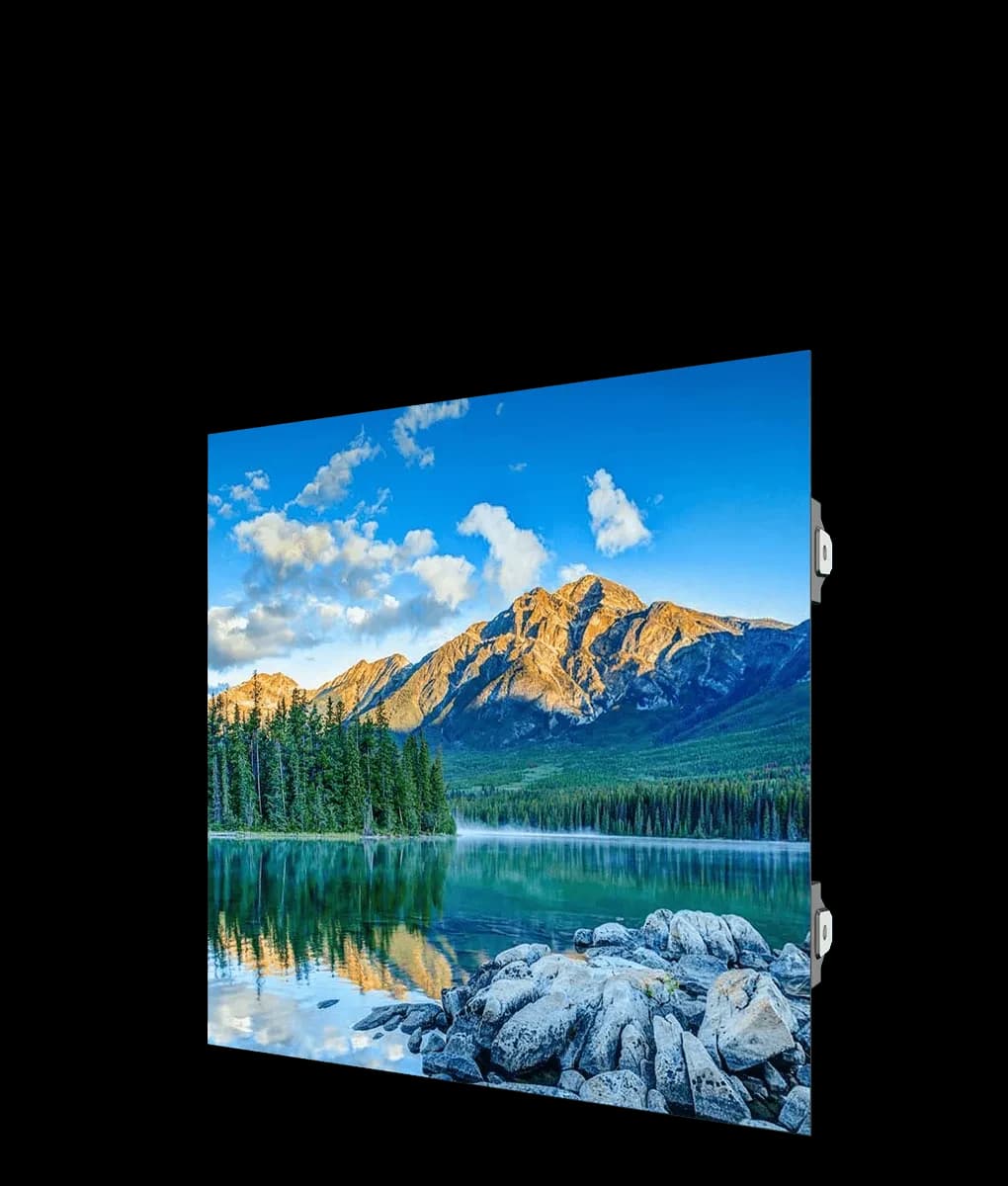

UGM II 3.9

Lighter and cheaper per m² than the Upad — the sensible choice for big backdrops seen from row ten onward.

P3.9rental

Unilumin

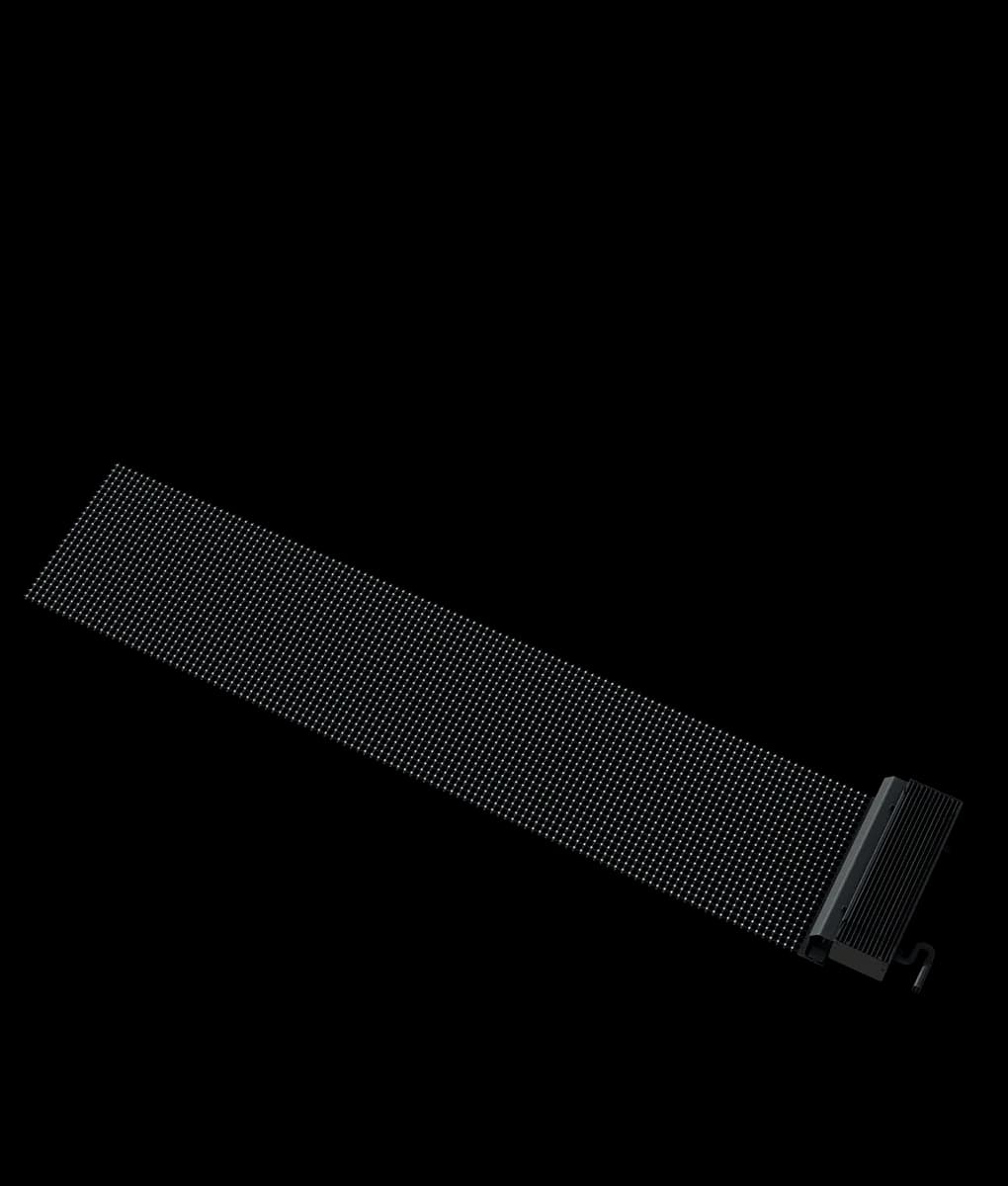

Udesign SV 3.9

Roughly 70% transparency — the shopfront keeps its daylight and the display still reads from the street.

P3.9indoor

Unilumin

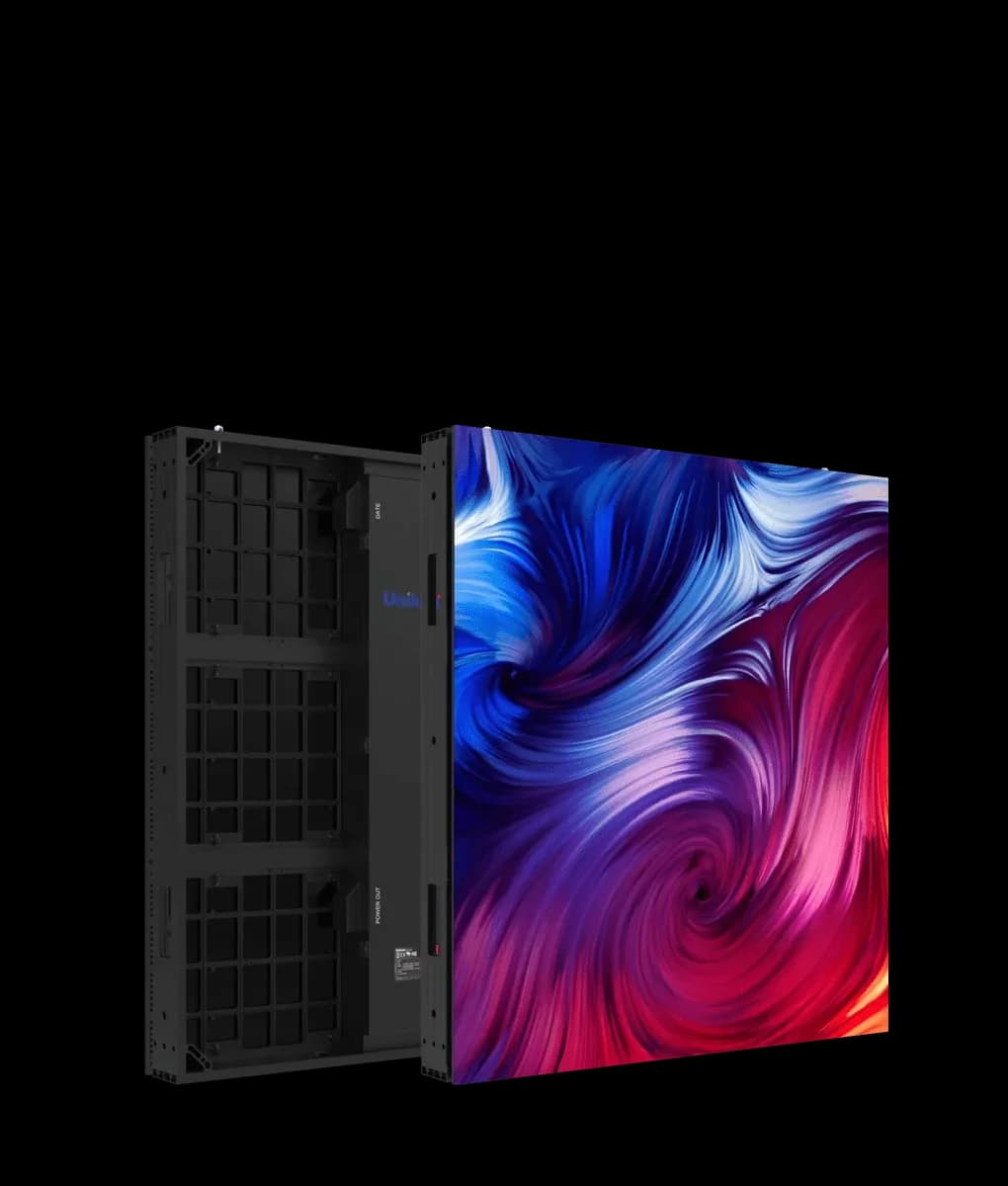

UsportX P4

Unilumin's USports flagship — the perimeter and main-screen platform behind Etihad Stadium and BayArena.

P4outdoor

Model	Pitch	Brightness	Use	Cabinet
Unilumin Umake Sphere 3.9 (this model)	P3.9	1,200 nits	indoor	500\u00d7500 mm
Unilumin UGM II 3.9	P3.9	1,250 nits	rental	500\u00d7500 mm
Unilumin Udesign SV 3.9	P3.9	4,000 nits	indoor	1000\u00d7500 mm
Unilumin UsportX P4	P4	7,000 nits	outdoor	1600\u00d7900 mm
