Lampro · Fine Pitch COB — Control Rooms
Lampro LMini COB 0.9
Lampro's sub-millimetre COB at a price that actually clears a Nepali government tender — the reason it wins most command-centre bids here.
Cabinet front elevation — emitter grid and module seams drawn to scale.
Manufacturer product photography. Photography of the delivered installation is included in every project handover.
Pixel pitch
P0.9
Brightness
620 nits
Refresh
3,840 Hz
Use
Indoor
How it connects
Your source to this wall
Every Lampro wall we supply ships as a complete signal chain \u2014 including the NovaStar control layer most suppliers leave for you to figure out.
How it connects
source
Source (PC / player / camera)
processor
NovaStar H Series
controller
Sending & receiving cards
wall
Lampro LMini COB 0.9
Engineering
Major features, part by part
Hover any numbered point to see what it does and why it matters on site.
Reference
Typical wall sizes
Cabinets, resolution, power and weight for common wall sizes built from the 600×337.5 mm Lampro cabinet at P0.9.
| Target size | Cabinets | Resolution | Actual size | Avg power | Weight |
|---|---|---|---|---|---|
| 3 × 2 m | 5 × 6 (30) | 3333 × 2250 (7.5 MP) | 3.00 × 2.02 m | 0.7 kW | 210 kg |
| 4 × 2.5 m | 7 × 7 (49) | 4667 × 2625 (12.3 MP) | 4.20 × 2.36 m | 1.2 kW | 343 kg |
| 5 × 3 m | 8 × 9 (72) | 5333 × 3375 (18.0 MP) | 4.80 × 3.04 m | 1.7 kW | 504 kg |
| 6 × 3.5 m | 10 × 10 (100) | 6667 × 3750 (25.0 MP) | 6.00 × 3.38 m | 2.4 kW | 700 kg |
| 8 × 4.5 m | 13 × 13 (169) | 8667 × 4875 (42.3 MP) | 7.80 × 4.39 m | 4.1 kW | 1183 kg |
| 10 × 6 m | 17 × 18 (306) | 11333 × 6750 (76.5 MP) | 10.20 × 6.08 m | 7.3 kW | 2142 kg |
Cabinet counts are rounded to whole cabinets, so the actual size differs slightly from the target. Power is the average draw; size the supply on peak. Confirm structural loading against the manufacturer datasheet.
Why this model
COB durability
Chip-on-board surface resists knocks, dust and cleaning — built for 24/7 duty.
16-bit grayscale
Holds detail in dark scenes so operators read low-light data clearly.
Redundant power & data
N+1 backup keeps the wall alive if a supply or cable fails.
Specifications
Applications
FAQ
Is it rated for 24/7 operation?
Yes — COB fine pitch is designed for continuous duty with redundant power and signal.
How close can operators sit?
Comfortably within 1–2 m at these pitches, which suits control-room desks.
Will it look sharp?
Viewing distance & image quality
Minimum viewing distance
0.9 m
Closest a viewer should stand
Comfortable distance
2.3 m
Where the image looks its best
Pixels per m²
1,234,568
Density at this pitch
Brightness
620 nits
Comfortable indoors
Rule of thumb: minimum viewing distance in metres \u2248 pixel pitch in millimetres. Final figures confirmed on site survey.
What you actually receive
A complete system, not just panels
LED cabinets & modules
Lampro LMini COB 0.9 · 600×337.5 mm
Control system
NovaStar H Series + receiving cards
Power & data cabling
Looms, distribution and redundancy
Mounting structure
Wall frame, floor stand or truss
Spare modules & PSU
Held in Kathmandu for fast swap
Commissioning
Calibration, content test, handover training
How we deliver it
Site survey
We measure the space, power and sightlines — free across Nepal.
Structure & install
Fabrication, mounting and cabling by our certified engineers.
Commissioning
Calibration, controller setup and operator training.
AMC & support
Annual maintenance with spares stocked locally.
Warranty
Up to 3 years
Honoured locally in Nepal
Indicative lead time
2\u20134 weeks
Ex-stock items ship faster
Certifications
Also consider
| Model | Pitch | Brightness | Use | Cabinet |
|---|---|---|---|---|
| Lampro LMini COB 0.9 (this model) | P0.9 | 620 nits | indoor | 600\u00d7337.5 mm |
| Lampro LMini AIO 1.2 | P1.2 | 600 nits | indoor | 600\u00d7337.5 mm |
| Lampro LC COB 1.25 | P1.25 | 600 nits | indoor | 600\u00d7337.5 mm |

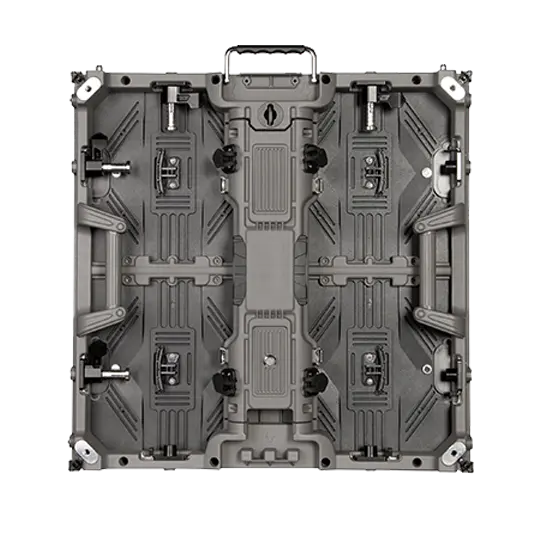

| Lampro BNX AIO 1.5 | P1.5 | 600 nits | indoor | 600\u00d7337.5 mm |
The full Lampro line
Lampro product lines we supply
Lampro — the most-trusted, best-value LED line in Nepal. COB fine pitch, DOOH-grade outdoor, rental staging and transparent, supported locally with genuine warranty.
Need a drawing, availability or the manufacturer datasheet for Lampro LMini COB 0.9?
Talk to an engineer →
