Unilumin Uslim III SMD 1.9
Under 30 mm deep, so it sits nearly flush on a lobby wall without building out a recess.
Cabinet front elevation — emitter grid and module seams drawn to scale.

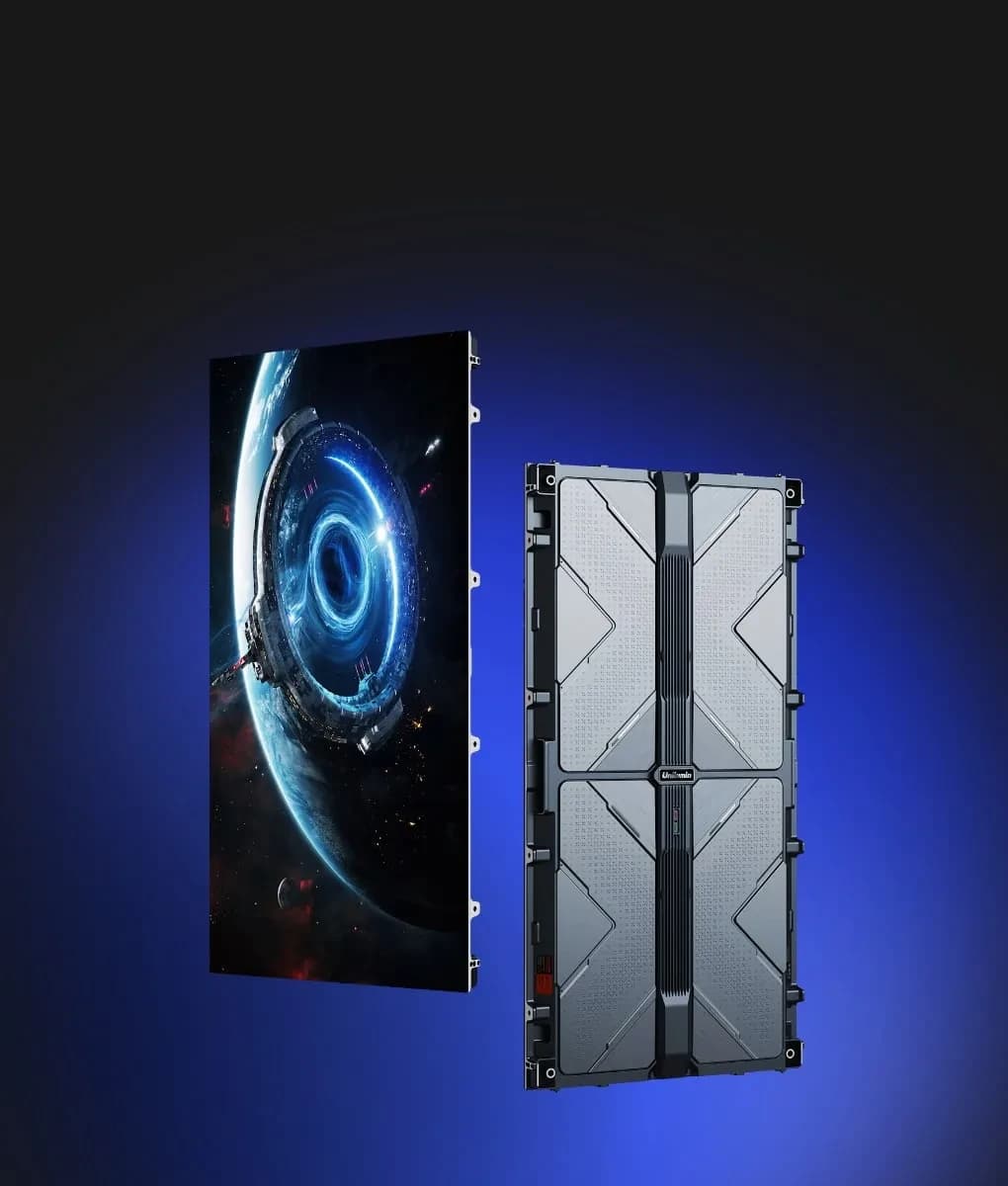

Manufacturer product photography. Photography of the delivered installation is included in every project handover.
Unilumin on YouTubePixel pitch
P1.9
Brightness
800 nits
Refresh
3,840 Hz
Use
Indoor
How it connects
Your source to this wall
Every Unilumin wall we supply ships as a complete signal chain \u2014 including the NovaStar control layer most suppliers leave for you to figure out.
How it connects
source
Source (PC / player / camera)
processor
NovaStar MX40 Pro
controller
Sending & receiving cards
wall
Unilumin Uslim III SMD 1.9
Engineering
Major features, part by part
Hover any numbered point to see what it does and why it matters on site.
Reference
Typical wall sizes
Cabinets, resolution, power and weight for common wall sizes built from the 600×337.5 mm Unilumin cabinet at P1.9.
| Target size | Cabinets | Resolution | Actual size | Avg power | Weight |
|---|---|---|---|---|---|
| 3 × 2 m | 5 × 6 (30) | 1579 × 1066 (1.7 MP) | 3.00 × 2.02 m | 0.9 kW | 204 kg |
| 4 × 2.5 m | 7 × 7 (49) | 2211 × 1243 (2.7 MP) | 4.20 × 2.36 m | 1.5 kW | 333 kg |
| 5 × 3 m | 8 × 9 (72) | 2526 × 1599 (4.0 MP) | 4.80 × 3.04 m | 2.2 kW | 490 kg |
| 6 × 3.5 m | 10 × 10 (100) | 3158 × 1776 (5.6 MP) | 6.00 × 3.38 m | 3.0 kW | 680 kg |
| 8 × 4.5 m | 13 × 13 (169) | 4105 × 2309 (9.5 MP) | 7.80 × 4.39 m | 5.1 kW | 1149 kg |
| 10 × 6 m | 17 × 18 (306) | 5368 × 3197 (17.2 MP) | 10.20 × 6.08 m | 9.2 kW | 2081 kg |
Cabinet counts are rounded to whole cabinets, so the actual size differs slightly from the target. Power is the average draw; size the supply on peak. Confirm structural loading against the manufacturer datasheet.
Why this model
Seamless 16:9 tiling
Cabinets tile to exact 16:9 canvases — no odd edges or visible seams.
Beats a projector
Bright in lit rooms, no lamp changes, instant on.
Low-noise, low-heat
Fanless operation keeps meeting rooms silent.
Specifications
Applications
FAQ
Better than a projector?
Yes — far brighter in daylight-lit rooms, no wash-out and no consumables.
Can it show a PC and video together?
Yes, with a processor you can window multiple live sources.
Will it look sharp?
Viewing distance & image quality
Minimum viewing distance
1.9 m
Closest a viewer should stand
Comfortable distance
4.8 m
Where the image looks its best
Pixels per m²
277,008
Density at this pitch
Brightness
800 nits
Comfortable indoors
Rule of thumb: minimum viewing distance in metres \u2248 pixel pitch in millimetres. Final figures confirmed on site survey.
What you actually receive
A complete system, not just panels
LED cabinets & modules
Unilumin Uslim III SMD 1.9 · 600×337.5 mm
Control system
NovaStar MX40 Pro + receiving cards
Power & data cabling
Looms, distribution and redundancy
Mounting structure
Wall frame, floor stand or truss
Spare modules & PSU
Held in Kathmandu for fast swap
Commissioning
Calibration, content test, handover training
How we deliver it
Site survey
We measure the space, power and sightlines — free across Nepal.
Structure & install
Fabrication, mounting and cabling by our certified engineers.
Commissioning
Calibration, controller setup and operator training.
AMC & support
Annual maintenance with spares stocked locally.
Warranty
Up to 3 years
Honoured locally in Nepal
Indicative lead time
2\u20134 weeks
Ex-stock items ship faster
Certifications
Also consider
| Model | Pitch | Brightness | Use | Cabinet |
|---|---|---|---|---|
| Unilumin Uslim III SMD 1.9 (this model) | P1.9 | 800 nits | indoor | 600\u00d7337.5 mm |
| Unilumin U-Natural 1.8 | P1.8 | 800 nits | indoor | 500\u00d7500 mm |
| Unilumin Umeeting 1.8 | P1.8 | 700 nits | indoor | 600\u00d7337.5 mm |
| Unilumin UpanelS 1.5 | P1.5 | 800 nits | indoor | 600\u00d7337.5 mm |
The full Unilumin line
Unilumin product lines we supply
Unilumin's full range in Nepal — control-room fine pitch trusted by Aramco & JANAF, stadium USports, plus creative and rental — with genuine warranty and local install.
Control Room & Command
Upanel 1.2 · Upanel 1.5 · UpanelS 1.2 · UpanelS 1.5 · +6 more
10 models \u2192Fine Pitch Indoor
Umicro · Umini III · Umini III Pro · Uslim III SMD · +1 more
5 models \u2192Sports & Stadium (USports)
UsportX · UsportR · UsportMA II
3 models \u2192Creative & Rental
U-Natural · Udesign SV · UHF · Umake OF Sphere · +3 more
7 models \u2192Need a drawing, availability or the manufacturer datasheet for Unilumin Uslim III SMD 1.9?
