Evolve · Outdoor & DOOH Billboards

Evolve E-P10

Name: Evolve E-P10
Brand: Evolve

Maximum area per rupee: 10 mm for very large, very distant billboards.

Full specifications Typical wall sizes

Full specifications, dimensions and contact details on one page.

Front · 1/6

Cabinet front elevation — emitter grid and module seams drawn to scale.

Manufacturer product photography. Photography of the delivered installation is included in every project handover.

Pixel pitch

P10

Brightness

6,000 nits

Refresh

3,840 Hz

Use

Outdoor

How it connects

Your source to this wall

Every Evolve wall we supply ships as a complete signal chain \u2014 including the NovaStar control layer most suppliers leave for you to figure out.

How it connects

source

Source (PC / player / camera)

processor

NovaStar Taurus Series

controller

Sending & receiving cards

wall

Evolve E-P10

Engineering

Major features, part by part

Hover any numbered point to see what it does and why it matters on site.

Reference

Typical wall sizes

Cabinets, resolution, power and weight for common wall sizes built from the 960×960 mm Evolve cabinet at P10.

Target size	Cabinets	Resolution	Actual size	Avg power	Weight
3 × 2 m	3 × 2 (6)	288 × 192 (0.1 MP)	2.88 × 1.92 m	2.0 kW	162 kg
4 × 2.5 m	4 × 3 (12)	384 × 288 (0.1 MP)	3.84 × 2.88 m	4.0 kW	324 kg
5 × 3 m	5 × 3 (15)	480 × 288 (0.1 MP)	4.80 × 2.88 m	5.0 kW	405 kg
6 × 3.5 m	6 × 4 (24)	576 × 384 (0.2 MP)	5.76 × 3.84 m	8.0 kW	648 kg
8 × 4.5 m	8 × 5 (40)	768 × 480 (0.4 MP)	7.68 × 4.80 m	13.3 kW	1080 kg
10 × 6 m	10 × 6 (60)	960 × 576 (0.6 MP)	9.60 × 5.76 m	19.9 kW	1620 kg

Cabinet counts are rounded to whole cabinets, so the actual size differs slightly from the target. Power is the average draw; size the supply on peak. Confirm structural loading against the manufacturer datasheet.

Recommended controlNovaStar Taurus SeriesUnattended signage — content and brightness scheduled remotely, no operator needed.NovaStar Taurus Series →

Why this model

IP65 front & rear

Sealed against monsoon rain and dust, year-round.

Smart dimming

Light sensors auto-adjust brightness and cut power cost at night.

Sunlight readable

High-nit output keeps content legible in direct sun.

Specifications

Display

Pixel pitch10 mm

LED typeSMD

Brightness6,000 nits

Refresh rate3,840 Hz

Colour depth14–16-bit

Viewing angle160° / 160°

Cabinet

Cabinet size960 × 960 mm

Resolution / cabinet96 × 96

Weight27 kg

Service accessFront + rear

MountingFixed outdoor, wall or steel structure

Power & environment

Avg power≈ 332 W / cabinet

Max power≈ 995 W / cabinet

IP ratingIP65 front & rear

Lifespan100,000 hrs

Applications

BillboardsBuilding facadesRoadside DOOHTransit

FAQ

How bright do I need outdoors?

6,000–10,000 nits for direct sun; it auto-dims after dark.

Will it survive monsoon?

Yes — IP65 sealing front and rear, with drainage and coated boards.

Will it look sharp?

Viewing distance & image quality

Minimum viewing distance

10 m

Closest a viewer should stand

Comfortable distance

25 m

Where the image looks its best

Pixels per m²

10,000

Density at this pitch

Brightness

6,000 nits

Daylight readable

Rule of thumb: minimum viewing distance in metres \u2248 pixel pitch in millimetres. Final figures confirmed on site survey.

What you actually receive

A complete system, not just panels

LED cabinets & modules

Evolve E-P10 · 960×960 mm

Control system

NovaStar Taurus Series + receiving cards

Power & data cabling

Looms, distribution and redundancy

Mounting structure

Wall frame, floor stand or truss

Spare modules & PSU

Held in Kathmandu for fast swap

Commissioning

Calibration, content test, handover training

How we deliver it

Site survey

We measure the space, power and sightlines — free across Nepal.

Structure & install

Fabrication, mounting and cabling by our certified engineers.

Commissioning

Calibration, controller setup and operator training.

AMC & support

Annual maintenance with spares stocked locally.

Warranty

Up to 3 years

Honoured locally in Nepal

Indicative lead time

2\u20134 weeks

Ex-stock items ship faster

Certifications

CERoHSFCCISO 9001

Also consider

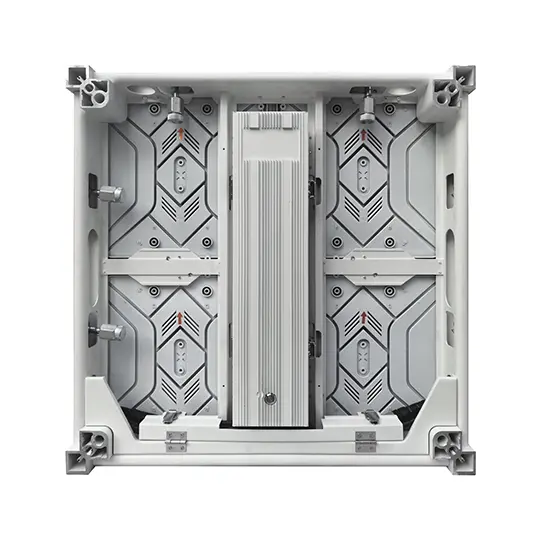

Evolve
