ROE Visual · Transparent LED

ROE Visual Vanish V8S

Name: ROE Visual Vanish V8S
Brand: ROE Visual

ROE's transparent panel, built to rental tolerances — it goes up and comes down without damaging the glass line.

Full specifications Typical wall sizes

Full specifications, dimensions and contact details on one page.

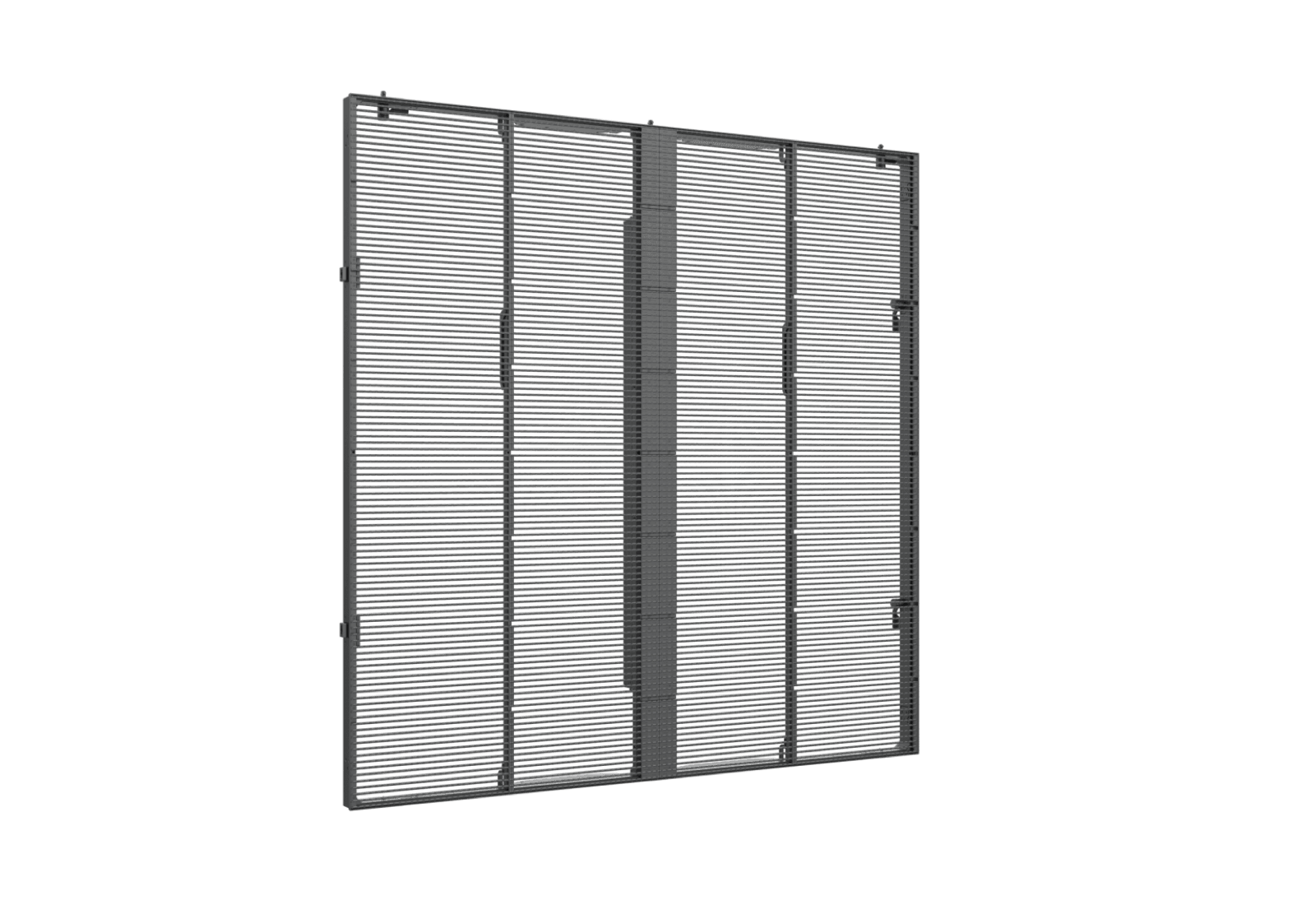

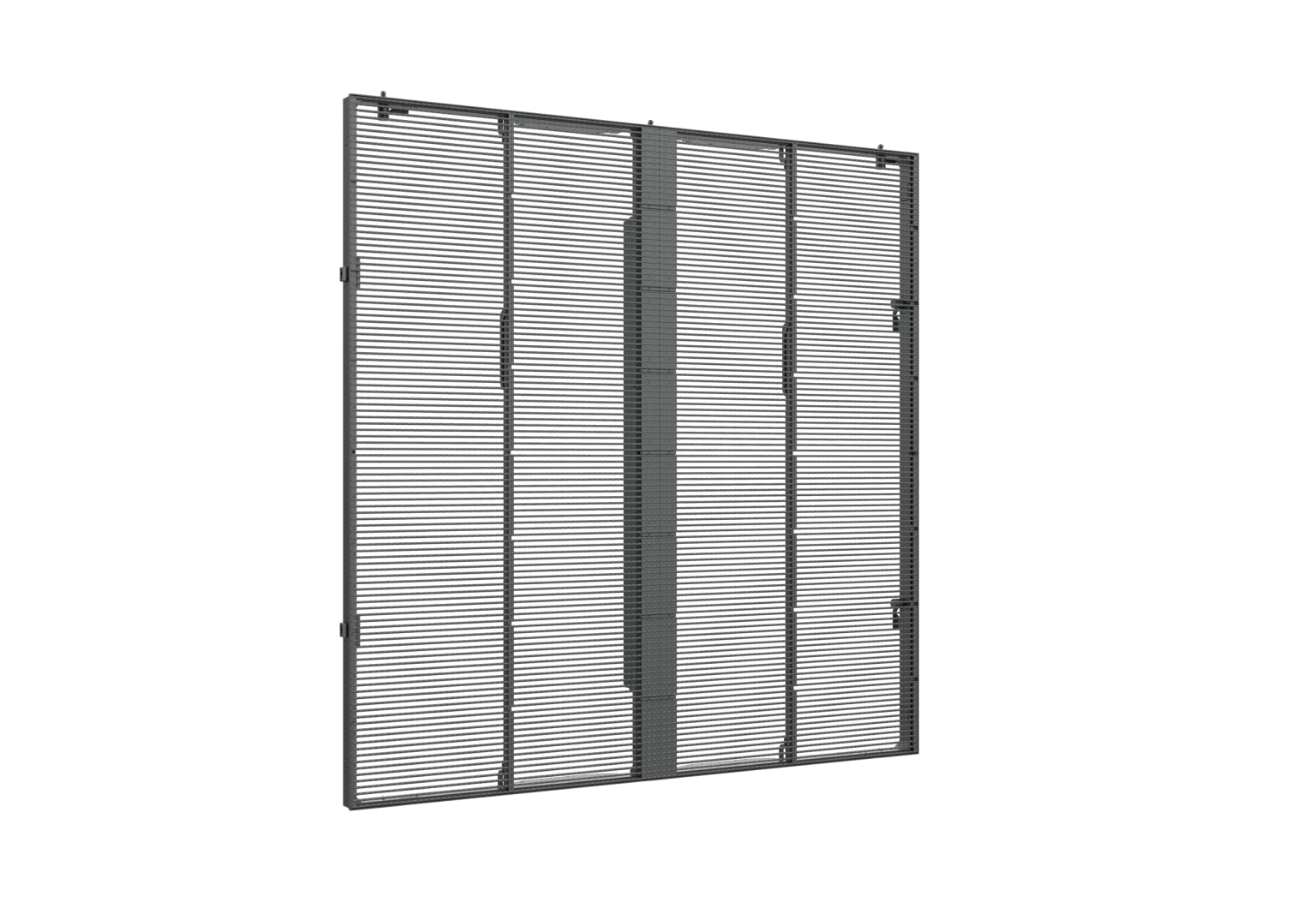

Front · 1/6

Cabinet front elevation — emitter grid and module seams drawn to scale.

Manufacturer product photography. Photography of the delivered installation is included in every project handover.

ROE Visual on YouTube

Pixel pitch

P8.3

Brightness

4,000 nits

Refresh

7,680 Hz

Use

Indoor

How it connects

Your source to this wall

Every ROE Visual wall we supply ships as a complete signal chain \u2014 including the NovaStar control layer most suppliers leave for you to figure out.

How it connects

source

Source (PC / player / camera)

processor

NovaStar MX30

controller

Sending & receiving cards

wall

ROE Visual Vanish V8S

Engineering

Major features, part by part

Hover any numbered point to see what it does and why it matters on site.

Reference

Typical wall sizes

Cabinets, resolution, power and weight for common wall sizes built from the 1000×500 mm ROE Visual cabinet at P8.3.

Target size	Cabinets	Resolution	Actual size	Avg power	Weight
3 × 2 m	3 × 4 (12)	361 × 241 (0.1 MP)	3.00 × 2.00 m	1.2 kW	144 kg
4 × 2.5 m	4 × 5 (20)	482 × 301 (0.1 MP)	4.00 × 2.50 m	2.0 kW	240 kg
5 × 3 m	5 × 6 (30)	602 × 361 (0.2 MP)	5.00 × 3.00 m	3.0 kW	360 kg
6 × 3.5 m	6 × 7 (42)	723 × 422 (0.3 MP)	6.00 × 3.50 m	4.2 kW	504 kg
8 × 4.5 m	8 × 9 (72)	964 × 542 (0.5 MP)	8.00 × 4.50 m	7.3 kW	864 kg
10 × 6 m	10 × 12 (120)	1205 × 723 (0.9 MP)	10.00 × 6.00 m	12.1 kW	1440 kg

Cabinet counts are rounded to whole cabinets, so the actual size differs slightly from the target. Power is the average draw; size the supply on peak. Confirm structural loading against the manufacturer datasheet.

Recommended controlNovaStar MX30Permanent install — COEX keeps calibration in the controller for re-calibration years later.NovaStar MX30 →

Why this model

60–90% transparency

Light and sightlines pass through — the window still works as a window.

Ultra-slim

Mounts behind glass with minimal depth and structure.

Low power draw

Far less consumption than a solid screen of the same size.

Specifications

Display

Pixel pitch8.3 mm

LED typeTransparent SMD

Brightness4,000 nits

Refresh rate7,680 Hz

Colour depth16-bit

Viewing angle160° / 160°

Cabinet

Cabinet size1000 × 500 mm

Resolution / cabinet120 × 60

Weight12 kg

Service accessFront

MountingIndoor-mounted, outward-facing (behind glass)

Power & environment

Avg power≈ 101 W / cabinet

Max power≈ 304 W / cabinet

IP ratingIP31 (indoor-mounted)

Lifespan100,000 hrs

Applications

Shop windowsGlass facadesShowroomsAirports

FAQ

Does it block the shop window?

No — transparency keeps daylight and visibility while the content appears to float.

Will it look sharp?

Viewing distance & image quality

Minimum viewing distance

8.3 m

Closest a viewer should stand

Comfortable distance

20.8 m

Where the image looks its best

Pixels per m²

14,516

Density at this pitch

Brightness

4,000 nits

Comfortable indoors

Rule of thumb: minimum viewing distance in metres \u2248 pixel pitch in millimetres. Final figures confirmed on site survey.

What you actually receive

A complete system, not just panels

LED cabinets & modules

ROE Visual Vanish V8S · 1000×500 mm

Control system

NovaStar MX30 + receiving cards

Power & data cabling

Looms, distribution and redundancy

Mounting structure

Wall frame, floor stand or truss

Spare modules & PSU

Held in Kathmandu for fast swap

Commissioning

Calibration, content test, handover training

How we deliver it

Site survey

We measure the space, power and sightlines — free across Nepal.

Structure & install

Fabrication, mounting and cabling by our certified engineers.

Commissioning

Calibration, controller setup and operator training.

AMC & support

Annual maintenance with spares stocked locally.

Warranty

Up to 3 years

Honoured locally in Nepal

Indicative lead time

2\u20134 weeks

Ex-stock items ship faster

Certifications

CERoHSFCCISO 9001

Also consider

ROE Visual

Carbon CB8

Big-format ROE for main-stage outdoor walls where the front row is still 20 m out.

P8.3rental

ROE Visual

Carbon CB5

The outdoor festival standard — IP65 front and rear, and it keeps running through a Nepali monsoon downpour.

P5.7rental

ROE Visual

Black Marble Floor 4.81

A genuine load-rated LED floor — people dance on it, and it survives the night.

P4.81indoor

Model	Pitch	Brightness	Use	Cabinet
ROE Visual Vanish V8S (this model)	P8.3	4,000 nits	indoor	1000\u00d7500 mm
ROE Visual Carbon CB8	P8.3	5,500 nits	rental	500\u00d71000 mm
ROE Visual Carbon CB5	P5.7	5,000 nits	rental	500\u00d71000 mm
ROE Visual Black Marble Floor 4.81	P4.81	1,500 nits	indoor	500\u00d7500 mm

The full ROE Visual line

ROE Visual product lines we supply

ROE Visual — the premium choice for rental, broadcast and virtual production. The panels behind Fox Sports, BBC Sport, Eurovision and Netflix volumes, available in Nepal.

Broadcast & XR

Black Pearl BP2 · Black Pearl 2V2 · Ruby RB1.9 · Ruby-C

4 models \u2192

Rental / Events

Carbon CB3 · Carbon CB5 · Carbon CB8 · Carbon MarkII · +5 more

9 models \u2192

Transparent (Vanish)

Vanish V8S · Vanish V8 · Vanish V8T · Vanish ST · +2 more

6 models \u2192

Fixed Install

Denali · Meru · Graphite · Jet · +2 more

6 models \u2192

Creative & Floor

Black Marble · Omni Tube · ROE Strip

3 models \u2192

Need a drawing, availability or the manufacturer datasheet for ROE Visual Vanish V8S?
