Lampro · Indoor Fine Pitch — Corporate
Lampro LXII 2.5
Brighter 2.5 mm for atriums and banking halls where daylight comes through the glazing.
Cabinet front elevation — emitter grid and module seams drawn to scale.

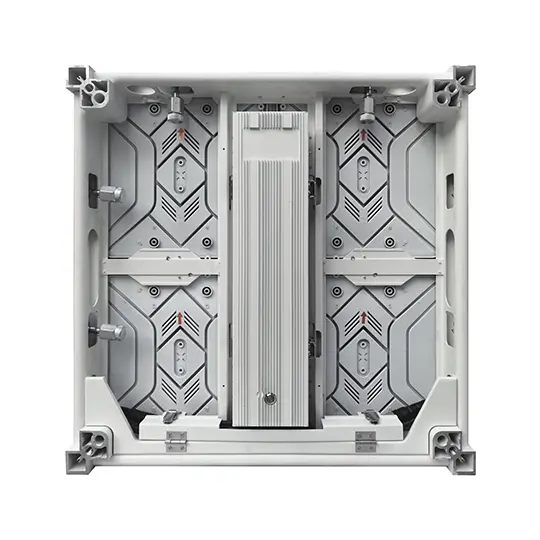

Manufacturer product photography. Photography of the delivered installation is included in every project handover.
Pixel pitch
P2.5
Brightness
900 nits
Refresh
3,840 Hz
Use
Indoor
How it connects
Your source to this wall
Every Lampro wall we supply ships as a complete signal chain \u2014 including the NovaStar control layer most suppliers leave for you to figure out.
How it connects
source
Source (PC / player / camera)
processor
NovaStar MX30
controller
Sending & receiving cards
wall
Lampro LXII 2.5
Engineering
Major features, part by part
Hover any numbered point to see what it does and why it matters on site.
Reference
Typical wall sizes
Cabinets, resolution, power and weight for common wall sizes built from the 600×337.5 mm Lampro cabinet at P2.5.
| Target size | Cabinets | Resolution | Actual size | Avg power | Weight |
|---|---|---|---|---|---|
| 3 × 2 m | 5 × 6 (30) | 1200 × 810 (1.0 MP) | 3.00 × 2.02 m | 1.0 kW | 204 kg |
| 4 × 2.5 m | 7 × 7 (49) | 1680 × 945 (1.6 MP) | 4.20 × 2.36 m | 1.7 kW | 333 kg |
| 5 × 3 m | 8 × 9 (72) | 1920 × 1215 (2.3 MP) | 4.80 × 3.04 m | 2.4 kW | 490 kg |
| 6 × 3.5 m | 10 × 10 (100) | 2400 × 1350 (3.2 MP) | 6.00 × 3.38 m | 3.4 kW | 680 kg |
| 8 × 4.5 m | 13 × 13 (169) | 3120 × 1755 (5.5 MP) | 7.80 × 4.39 m | 5.7 kW | 1149 kg |
| 10 × 6 m | 17 × 18 (306) | 4080 × 2430 (9.9 MP) | 10.20 × 6.08 m | 10.4 kW | 2081 kg |
Cabinet counts are rounded to whole cabinets, so the actual size differs slightly from the target. Power is the average draw; size the supply on peak. Confirm structural loading against the manufacturer datasheet.
Why this model
Seamless 16:9 tiling
Cabinets tile to exact 16:9 canvases — no odd edges or visible seams.
Beats a projector
Bright in lit rooms, no lamp changes, instant on.
Low-noise, low-heat
Fanless operation keeps meeting rooms silent.
Specifications
Applications
FAQ
Better than a projector?
Yes — far brighter in daylight-lit rooms, no wash-out and no consumables.
Can it show a PC and video together?
Yes, with a processor you can window multiple live sources.
Will it look sharp?
Viewing distance & image quality
Minimum viewing distance
2.5 m
Closest a viewer should stand
Comfortable distance
6.3 m
Where the image looks its best
Pixels per m²
160,000
Density at this pitch
Brightness
900 nits
Comfortable indoors
Rule of thumb: minimum viewing distance in metres \u2248 pixel pitch in millimetres. Final figures confirmed on site survey.
What you actually receive
A complete system, not just panels
LED cabinets & modules
Lampro LXII 2.5 · 600×337.5 mm
Control system
NovaStar MX30 + receiving cards
Power & data cabling
Looms, distribution and redundancy
Mounting structure
Wall frame, floor stand or truss
Spare modules & PSU
Held in Kathmandu for fast swap
Commissioning
Calibration, content test, handover training
How we deliver it
Site survey
We measure the space, power and sightlines — free across Nepal.
Structure & install
Fabrication, mounting and cabling by our certified engineers.
Commissioning
Calibration, controller setup and operator training.
AMC & support
Annual maintenance with spares stocked locally.
Warranty
Up to 3 years
Honoured locally in Nepal
Indicative lead time
2\u20134 weeks
Ex-stock items ship faster
Certifications
Also consider
| Model | Pitch | Brightness | Use | Cabinet |
|---|---|---|---|---|
| Lampro LXII 2.5 (this model) | P2.5 | 900 nits | indoor | 600\u00d7337.5 mm |
| Lampro LCM 2.6 | P2.6 | 1,000 nits | indoor | 640\u00d7480 mm |
| Lampro RNII 2.6 | P2.6 | 1,200 nits | rental | 500\u00d7500 mm |
| Lampro UVF 2.6 | P2.6 | 3,000 nits | indoor | 1000\u00d7500 mm |
The full Lampro line
Lampro product lines we supply
Lampro — the most-trusted, best-value LED line in Nepal. COB fine pitch, DOOH-grade outdoor, rental staging and transparent, supported locally with genuine warranty.
Need a drawing, availability or the manufacturer datasheet for Lampro LXII 2.5?
