Lampro UVF 2.6
Tightest transparent pitch we stock, for close-viewed showroom glass and jewellery frontage.
Cabinet front elevation — emitter grid and module seams drawn to scale.

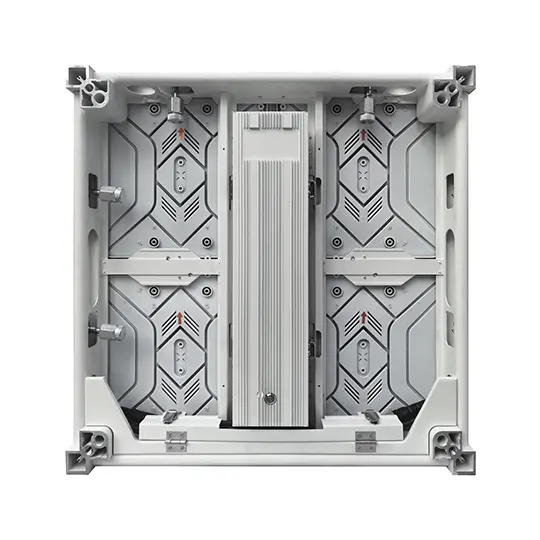

Manufacturer product photography. Photography of the delivered installation is included in every project handover.
Pixel pitch
P2.6
Brightness
3,000 nits
Refresh
3,840 Hz
Use
Indoor
How it connects
Your source to this wall
Every Lampro wall we supply ships as a complete signal chain \u2014 including the NovaStar control layer most suppliers leave for you to figure out.
How it connects
source
Source (PC / player / camera)
processor
NovaStar MX30
controller
Sending & receiving cards
wall
Lampro UVF 2.6
Engineering
Major features, part by part
Hover any numbered point to see what it does and why it matters on site.
Reference
Typical wall sizes
Cabinets, resolution, power and weight for common wall sizes built from the 1000×500 mm Lampro cabinet at P2.6.
| Target size | Cabinets | Resolution | Actual size | Avg power | Weight |
|---|---|---|---|---|---|
| 3 × 2 m | 3 × 4 (12) | 1154 × 769 (0.9 MP) | 3.00 × 2.00 m | 1.2 kW | 144 kg |
| 4 × 2.5 m | 4 × 5 (20) | 1538 × 962 (1.5 MP) | 4.00 × 2.50 m | 2.0 kW | 240 kg |
| 5 × 3 m | 5 × 6 (30) | 1923 × 1154 (2.2 MP) | 5.00 × 3.00 m | 3.0 kW | 360 kg |
| 6 × 3.5 m | 6 × 7 (42) | 2308 × 1346 (3.1 MP) | 6.00 × 3.50 m | 4.2 kW | 504 kg |
| 8 × 4.5 m | 8 × 9 (72) | 3077 × 1731 (5.3 MP) | 8.00 × 4.50 m | 7.3 kW | 864 kg |
| 10 × 6 m | 10 × 12 (120) | 3846 × 2308 (8.9 MP) | 10.00 × 6.00 m | 12.1 kW | 1440 kg |
Cabinet counts are rounded to whole cabinets, so the actual size differs slightly from the target. Power is the average draw; size the supply on peak. Confirm structural loading against the manufacturer datasheet.
Why this model
60–90% transparency
Light and sightlines pass through — the window still works as a window.
Ultra-slim
Mounts behind glass with minimal depth and structure.
Low power draw
Far less consumption than a solid screen of the same size.
Specifications
Applications
FAQ
Does it block the shop window?
No — transparency keeps daylight and visibility while the content appears to float.
Will it look sharp?
Viewing distance & image quality
Minimum viewing distance
2.6 m
Closest a viewer should stand
Comfortable distance
6.5 m
Where the image looks its best
Pixels per m²
147,929
Density at this pitch
Brightness
3,000 nits
Comfortable indoors
Rule of thumb: minimum viewing distance in metres \u2248 pixel pitch in millimetres. Final figures confirmed on site survey.
What you actually receive
A complete system, not just panels
LED cabinets & modules
Lampro UVF 2.6 · 1000×500 mm
Control system
NovaStar MX30 + receiving cards
Power & data cabling
Looms, distribution and redundancy
Mounting structure
Wall frame, floor stand or truss
Spare modules & PSU
Held in Kathmandu for fast swap
Commissioning
Calibration, content test, handover training
How we deliver it
Site survey
We measure the space, power and sightlines — free across Nepal.
Structure & install
Fabrication, mounting and cabling by our certified engineers.
Commissioning
Calibration, controller setup and operator training.
AMC & support
Annual maintenance with spares stocked locally.
Warranty
Up to 3 years
Honoured locally in Nepal
Indicative lead time
2\u20134 weeks
Ex-stock items ship faster
Certifications
Also consider
| Model | Pitch | Brightness | Use | Cabinet |
|---|---|---|---|---|
| Lampro UVF 2.6 (this model) | P2.6 | 3,000 nits | indoor | 1000\u00d7500 mm |
| Lampro LCM 2.6 | P2.6 | 1,000 nits | indoor | 640\u00d7480 mm |

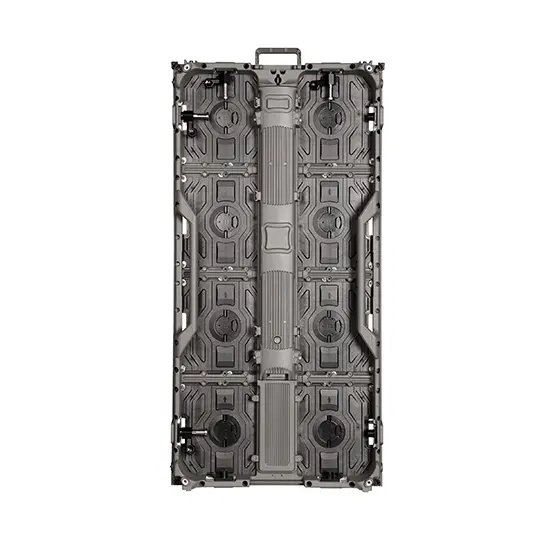

| Lampro RNII 2.6 | P2.6 | 1,200 nits | rental | 500\u00d7500 mm |
| Lampro LXII 2.5 | P2.5 | 900 nits | indoor | 600\u00d7337.5 mm |
The full Lampro line
Lampro product lines we supply
Lampro — the most-trusted, best-value LED line in Nepal. COB fine pitch, DOOH-grade outdoor, rental staging and transparent, supported locally with genuine warranty.
Need a drawing, availability or the manufacturer datasheet for Lampro UVF 2.6?
