Evolve · Transparent LED

Evolve Transparent 3.9

Name: Evolve Transparent 3.9
Brand: Evolve

Own-brand transparent at 3.9 mm — the cost-effective way to light up a shopfront without losing the window.

Full specifications Typical wall sizes

Full specifications, dimensions and contact details on one page.

Front · 1/6

Cabinet front elevation — emitter grid and module seams drawn to scale.

Manufacturer product photography. Photography of the delivered installation is included in every project handover.

Pixel pitch

P3.9

Brightness

4,000 nits

Refresh

3,840 Hz

Use

Indoor

How it connects

Your source to this wall

Every Evolve wall we supply ships as a complete signal chain \u2014 including the NovaStar control layer most suppliers leave for you to figure out.

How it connects

source

Source (PC / player / camera)

processor

NovaStar MX30

controller

Sending & receiving cards

wall

Evolve Transparent 3.9

Engineering

Major features, part by part

Hover any numbered point to see what it does and why it matters on site.

Reference

Typical wall sizes

Cabinets, resolution, power and weight for common wall sizes built from the 1000×500 mm Evolve cabinet at P3.9.

Target size	Cabinets	Resolution	Actual size	Avg power	Weight
3 × 2 m	3 × 4 (12)	769 × 513 (0.4 MP)	3.00 × 2.00 m	1.2 kW	144 kg
4 × 2.5 m	4 × 5 (20)	1026 × 641 (0.7 MP)	4.00 × 2.50 m	2.0 kW	240 kg
5 × 3 m	5 × 6 (30)	1282 × 769 (1.0 MP)	5.00 × 3.00 m	3.0 kW	360 kg
6 × 3.5 m	6 × 7 (42)	1538 × 897 (1.4 MP)	6.00 × 3.50 m	4.2 kW	504 kg
8 × 4.5 m	8 × 9 (72)	2051 × 1154 (2.4 MP)	8.00 × 4.50 m	7.3 kW	864 kg
10 × 6 m	10 × 12 (120)	2564 × 1538 (3.9 MP)	10.00 × 6.00 m	12.1 kW	1440 kg

Cabinet counts are rounded to whole cabinets, so the actual size differs slightly from the target. Power is the average draw; size the supply on peak. Confirm structural loading against the manufacturer datasheet.

Recommended controlNovaStar MX30Permanent install — COEX keeps calibration in the controller for re-calibration years later.NovaStar MX30 →

Why this model

60–90% transparency

Light and sightlines pass through — the window still works as a window.

Ultra-slim

Mounts behind glass with minimal depth and structure.

Low power draw

Far less consumption than a solid screen of the same size.

Specifications

Display

Pixel pitch3.9 mm

LED typeTransparent SMD

Brightness4,000 nits

Refresh rate3,840 Hz

Colour depth14–16-bit

Viewing angle160° / 160°

Cabinet

Cabinet size1000 × 500 mm

Resolution / cabinet256 × 128

Weight12 kg

Service accessFront

MountingIndoor-mounted, outward-facing (behind glass)

Power & environment

Avg power≈ 101 W / cabinet

Max power≈ 304 W / cabinet

IP ratingIP31 (indoor-mounted)

Lifespan100,000 hrs

Applications

Shop windowsGlass facadesShowroomsAirports

FAQ

Does it block the shop window?

No — transparency keeps daylight and visibility while the content appears to float.

Will it look sharp?

Viewing distance & image quality

Minimum viewing distance

3.9 m

Closest a viewer should stand

Comfortable distance

9.8 m

Where the image looks its best

Pixels per m²

65,746

Density at this pitch

Brightness

4,000 nits

Comfortable indoors

Rule of thumb: minimum viewing distance in metres \u2248 pixel pitch in millimetres. Final figures confirmed on site survey.

What you actually receive

A complete system, not just panels

LED cabinets & modules

Evolve Transparent 3.9 · 1000×500 mm

Control system

NovaStar MX30 + receiving cards

Power & data cabling

Looms, distribution and redundancy

Mounting structure

Wall frame, floor stand or truss

Spare modules & PSU

Held in Kathmandu for fast swap

Commissioning

Calibration, content test, handover training

How we deliver it

Site survey

We measure the space, power and sightlines — free across Nepal.

Structure & install

Fabrication, mounting and cabling by our certified engineers.

Commissioning

Calibration, controller setup and operator training.

AMC & support

Annual maintenance with spares stocked locally.

Warranty

Up to 3 years

Honoured locally in Nepal

Indicative lead time

2\u20134 weeks

Ex-stock items ship faster

Certifications

CERoHSFCCISO 9001

Also consider

Evolve

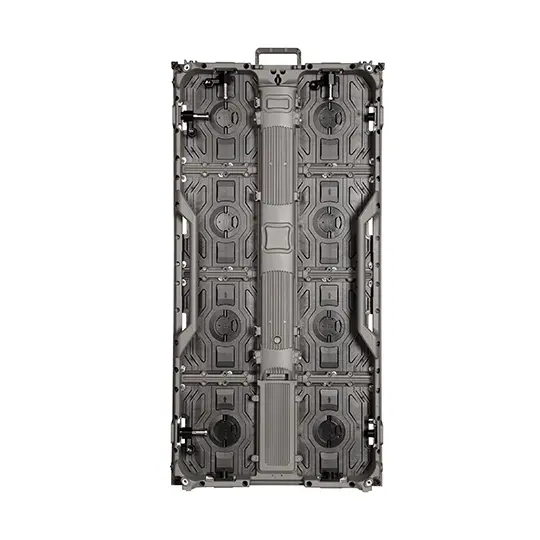

E-P3.91 Rental

Our own rental panel, stocked in Kathmandu — including standby units you can draw on mid-event.

P3.91rental

Evolve

Sphere 4.0

Own-brand spherical and cylindrical builds at a budget that clears a Nepali fit-out.

P4indoor

Evolve

E-P3.0

The value option for large indoor signage where the audience is never closer than four metres.

P3indoor

Model	Pitch	Brightness	Use	Cabinet
Evolve Transparent 3.9 (this model)	P3.9	4,000 nits	indoor	1000\u00d7500 mm
Evolve E-P3.91 Rental	P3.91	1,200 nits	rental	500\u00d7500 mm
Evolve Sphere 4.0	P4	1,200 nits	indoor	500\u00d7500 mm
Evolve E-P3.0	P3	1,000 nits	indoor	640\u00d7480 mm

The full Evolve line

Evolve product lines we supply

Evolve — our own-brand LED line: control-room fine pitch, indoor commercial, rental staging, weatherproof outdoor and fully custom special-shaped builds, at direct pricing with local support.

Fine Pitch (Control Rooms & Studios)

Evolve E-P0.9 · Evolve E-P1.25 · Evolve E-P1.56

3 models \u2192

Indoor Commercial

Evolve E-P1.5 · Evolve E-P1.8 · Evolve E-P2.5 · Evolve FS Plus

4 models \u2192

Rental Stage

Evolve E-P3.91 · Evolve E-P4.81 · Evolve R5 Arc Lock

3 models \u2192

Outdoor Advertising

Evolve E-P6 · Evolve E-P8 · Evolve E-P10

3 models \u2192

Creative & Custom

Evolve Transparent · Evolve Flexible · Evolve Ring · Evolve Sphere · +1 more

5 models \u2192

Need a drawing, availability or the manufacturer datasheet for Evolve Transparent 3.9?

Talk to an engineer →
